Multi-purpose flooring material (Flexible Mat)
- 10-year warranty product
- Floor underlayment
- Load-bearing capacity: ≒ 10000N
- Lightweight concrete
Flexible Mat
This versatile floor underlayment made from ultra-high strength lightweight concrete can be used for a variety of purposes with a free-thinking approach.
Flexible Mat is made from the same ultra-high-strength lightweight concrete as Network Floor, making it highly durable. Its structure, made up of small 50mm square blocks, allows it to conform to uneven floor surfaces and prevent wobbling. It is lighter than poured concrete, which requires a curing period, and can be quickly raised by 40mm.
Product Features
PRODUCT FEATURES
-
POINT 01Underfloor material & Raised Access Floor for small amounts of wiring
This convenient product can be used in a variety of situations, such as when you simply want to raise the floor or when you want to create space for a small amount of wiring. The Flexible Mat can be easily cut at 50mm intervals using a utility knife. If a small amount of wiring is required, you can combine it with the optional wiring channel to create a new wiring groove.
-
POINT 02Laying method and uneven surface following structure
The laying method does not require the use of screws or adhesives, making construction quick and easy when it comes to removing or changing the use of the tiles in the future.
The 50mm slits allow the product to conform to uneven floor surfaces, preventing wobbling and providing a comfortable walking experience.
-

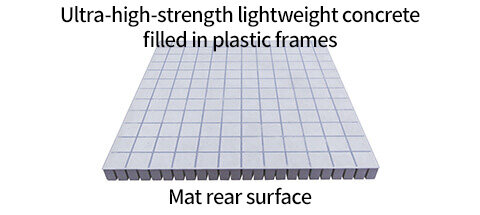

POINT 03High strength, 10-year warranty, earthquake-resistant fixing
The main material is ultra-high strength lightweight concrete.
This product has a high load-bearing capacity of 1,000 kgf (≒ 10,000 N)/50φ and comes with a 10-year warranty. Additionally, by passing anchor bolts for earthquake-resistant fixture fixing through the Flexible Mat, fixtures can be earthquake-resistant fixed to the slab. -

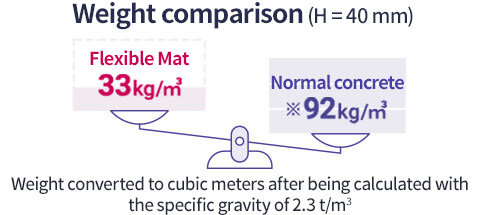

POINT 04Lightweight, 1/3 of concrete, and no curing required
When comparing Flexible Mat construction with regular concrete pouring, Flexible Mat weighs approximately one-third as much. It also contributes to shortening construction time as it does not require the curing period required for regular concrete.
-
POINT 05Easy to remove and relocate
This method of laying the mat does not require screws or adhesive fixation, so it is easy and economical to remove, relocate, and restore the mat to its original state when changing its use.
-
POINT 06Environmentally friendly products
This is an eco-friendly product that can be recycled. The collected Flexible Mat is crushed at the manufacturing plant and reborn as a new product using recycled materials.
More details
Product details
PRODUCT DETAILS
Spec.
→ The table can be scrolled to the right
| Product name/item | Flexible Mat |
|---|---|
| Type | Laying construction method |
| Material | Ultra-high strength lightweight concrete + resin |
| Size | 40H×600mmW×600mmL |
| Product height | Floor height = 40mm |
| mass | 33kg / m2 |
| Construction method | Laying method (no screws or adhesive required) |
Performance
→ The table can be scrolled to the right
| Product name/item | Flexible Mat |
|---|---|
| Load-bearing capacity | 1,000kgf/50φ concentrated load (≒10000N) (*) |
| Seismic Load | 1.0G |
| Combustion resistance | Afterflame time 0 seconds left |
| ■ | Please use a load-bearing plate when installing a heavy object weighing 1 ton or more. |
Public Recognition
→ The table can be scrolled to the right
| Product name/item | Flexible Mat |
|---|---|
| Certification and Evaluation |
|

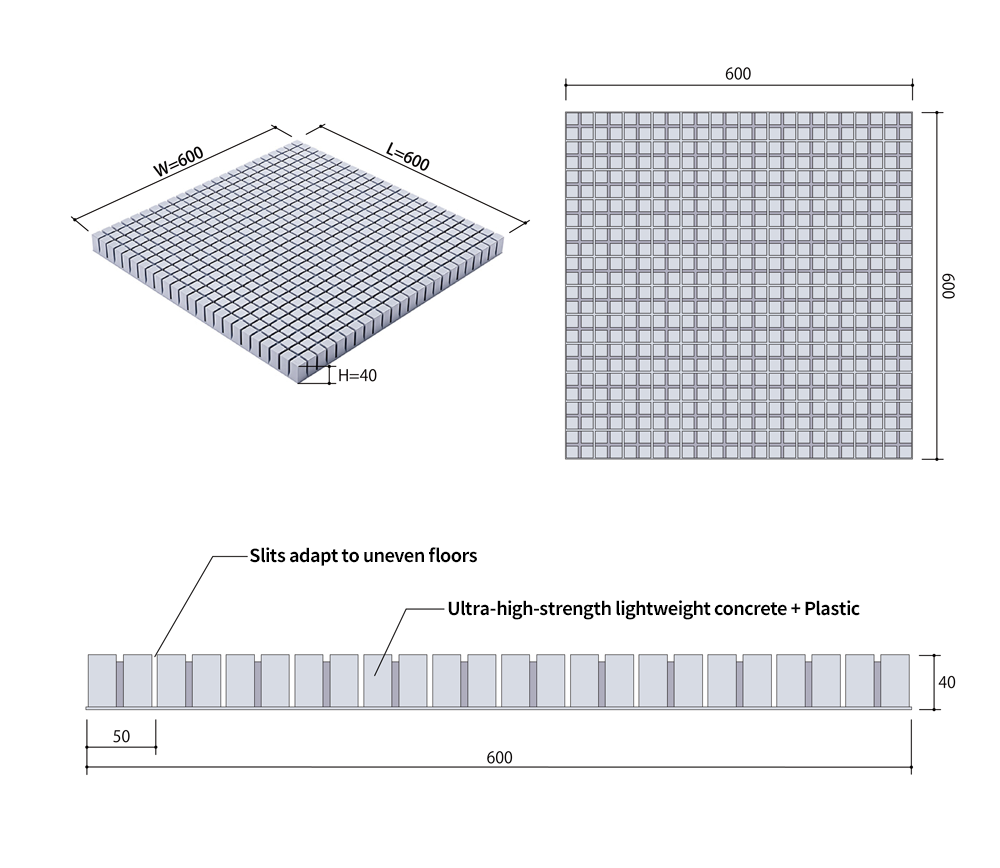

Product Structure
STRUCTURE
Procedure for small-scale wiring
WIRING FLOW
Small-scale wiring is possible using the optional "wiring channel" component.
-
Block Cut
-
After block cutting
-
Wiring channel installation
Case Studies
CASE STUDY
The Flexible Mat is a product with a wide range of possibilities depending on your ideas. Here are some examples of its use.
Examples of use as raising material
This system was adopted in anticipation of future changes to the warehouse due to the promotion of paperless systems and an increase in personnel. When changes are made, they can be accommodated by switching to Network Floor 40 or adding wiring grooves using wiring channels.
Other applications
Lobbies, elevator halls, corridors, bank waiting areas, etc.
Example of combining with Network Floor
This was adopted because it clearly defined the areas where wiring was not required and the areas where it was required.
Renovation example of a room with tatami flooring
A meeting room with 50mm tatami mats was remodeled to accommodate chairs by using flexible mats and carpet tiles.

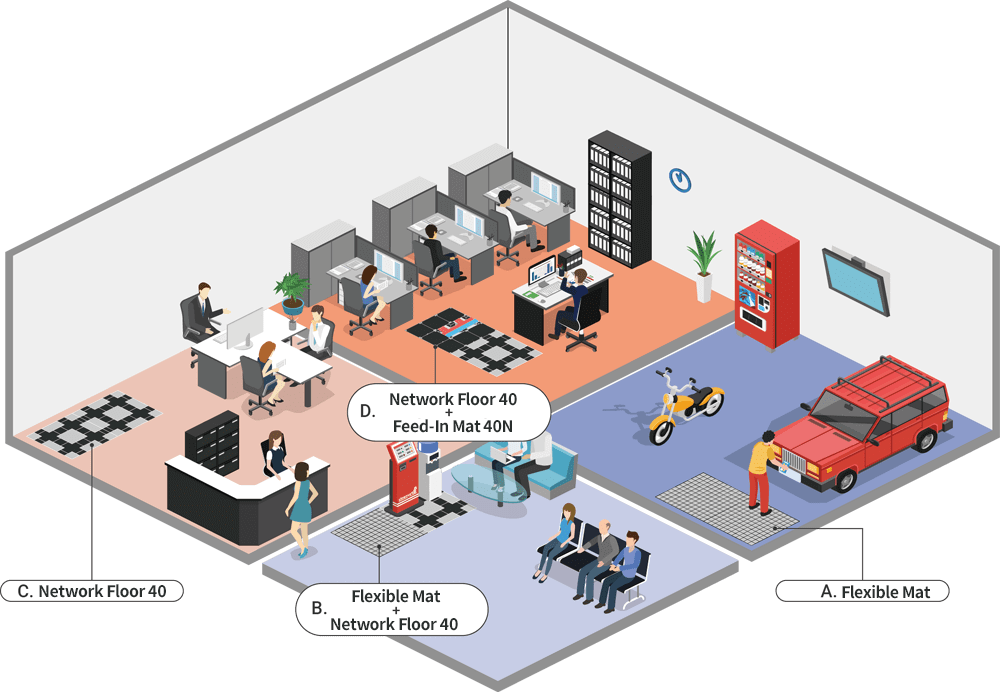

Examples of use by space
USAGE EXAMPLE
Depending on the purpose and amount of wiring under the floor, you can respond flexibly by using either the Flexible Mat or the Raised Access Floor Network Floor 40.
| A: Flexible Mat only |
| For rooms or areas where wiring is not required, such as exhibition rooms (wiring channels can accommodate small amounts of wiring) |
| B: Flexible Mat + Network Floor 40 |
| For rooms and areas that require partial wiring, such as lobbies and lounges |
| C: Network floor 40 only |
| For rooms and areas where wiring is required, such as small to medium-sized offices for regular use |
| D: Network floor 40 + feed-in mat 40N |
| For rooms and areas with office functions that require a large amount of wiring |
general information
LAWN/PLANTING
| Common name | Underfloor materials/raising materials |
|---|---|
| Recruitment room | Office/work room/conference room/reception room/lounge/free space, etc. |
| Adopted architectural use | Office buildings, medical facilities, housing, educational facilities, logistics facilities, commercial facilities, etc. |
| Installation location | Floor slab |
