Nihonbashi Daiwa Building Renovation【Network floor 29】

Installation Procedures for Network Floor 40 (Same as NWF40 Plus and NWF29)

  • 1. Component Delivery
  • 2. Floor Cleaning
  • 3. Layout and Marking
  • 5. Base Mat Installation
  • Lain fixed panels are easy to reuse
  • 4. Undersheet Placement

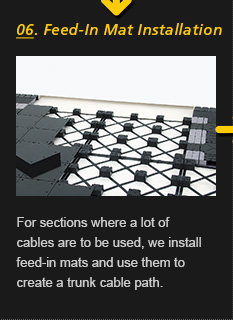

  • 6. Feed-in Mat Installation
  • 7. Cable Path Cover Installation
  • 8. Feed-in Channel Installation
  • 11. Carpet Tile Installation
  • 10. Border Cover Placement
  • 9. Border Mat Fitting

Additional Details

Door Entrance Cross Section
Door Entrance Cross Section
Details for Floor Slab Installation
Details for Floor Slab Installation
Diagonal Wall
Diagonal Wall
Curved Pillar
Curved Pillar
Long Ramp 40 Reentrant Angle
Long Ramp 40 Reentrant Angle
Ramp 29 Outside Angle
Long Ramp 40
Nosing 40 Reentrant and
Outside Angle
Ramp Cross Section
Nosing Cross Section

Installing Partitions
( Installing over the Network Floor )

Partition panels can be installed anywhere on the Network Floor.

Installing Partition Panels

Installation on the Network Floor
Partition panels can be installed directly on the Network Floor, either on its concrete base mats or cable path covers.
This feature ensures easy cabling and maximizes flexible when it comes to changing the system layout when needed.
Panels on the Network Floor are fixed with anchor bolts ( tapping screws for concrete ) fastened into holes drilled on the floor slab of the building.
Installation on building floor
Partition panels can also be set onto the building floor if necessary, before the Network Floor is installed.
